XR18W750
REV. 1.0.0
WIRELESS UART CONTROLLER

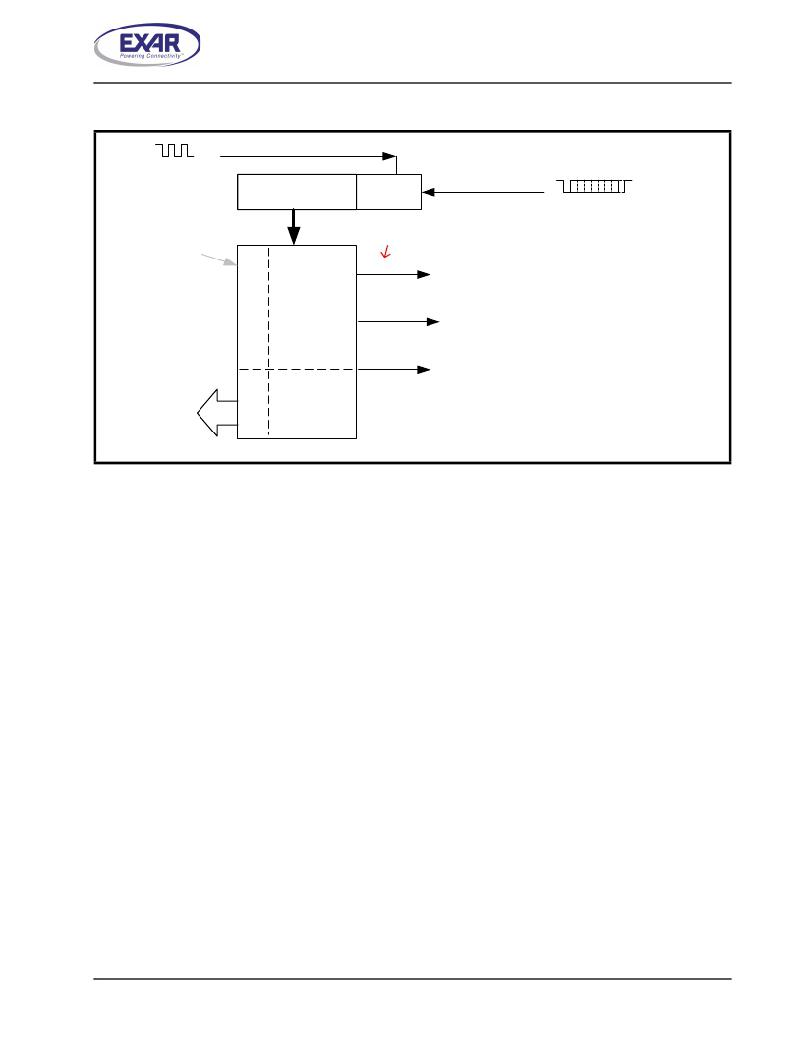

F IGURE 8. R ECEIVER O PERATION IN FIFO AND A UTO RTS F LOW C ONTROL M ODE
16X Clock
Receive Data Shift
Data Bit
Register (RSR)
Validation
Example
Receive Data Characters
64 bytes by 11-bit
wide
FIFO
- : RX FIFO trigger level selected at 16 bytes
(See Note Below)
Data falls to 8 RTS# re-asserts when data falls below the flow
control trigger level to restart remote transmitter.
Receive Data
Byte and Errors
Receive
Data FIFO
Receive
Data
FIFO
Trigger=16
Data fills to 24
Enable by EFR bit-6=1, MCR bit-1.
RHR Interrupt (ISR bit-2) programmed for
desired FIFO trigger level.
FIFO is Enabled by FCR bit-0=1
RTS# de-asserts when data fills above the flow
control trigger level to suspend remote transmitter.
Enable by EFR bit-6=1, MCR bit-1.
RXFIFO1
N OTE : Table-B selected as Trigger Table for Figure 8 ( Table 10 ).
3.11
Auto RTS (Hardware) Flow Control
Automatic RTS hardware flow control is used to prevent data overrun to the local receiver FIFO. The RTS#
output is used to request remote unit to suspend/resume data transmission. The auto RTS flow control
features is enabled to fit specific application requirement (see Figure 9 ):
? Enable auto RTS flow control using EFR bit-6.
? The auto RTS function must be started by asserting RTS# output pin (MCR bit-1 to logic 1 after it is enabled).
If using the Auto RTS interrupt:
? Enable RTS interrupt through IER bit-6 (after setting EFR bit-4). The UART issues an interrupt when the
RTS# pin makes a transition from low to high: ISR bit-5 will be set to logic 1.
3.12
Auto RTS Hysteresis
With the Auto RTS function enabled, an interrupt is generated when the receive FIFO reaches the
programmed RX trigger level. The RTS# pin will not be forced HIGH (RTS off) until the receive FIFO reaches
the upper limit of the hysteresis level. The RTS# pin will return LOW after the RX FIFO is unloaded to the lower
limit of the hysteresis level. Under the above described conditions, the enhanced UART will continue to accept
data until the receive FIFO gets full. The Auto RTS function is initiated when the RTS# output pin is asserted
LOW (RTS On). Table 13 shows the complete details for the Auto RTS# Hysteresis levels. Please note that
this table is for programmable trigger levels only (Table D). The hysteresis values for Tables A-C are the next
higher and next lower trigger levels in the corresponding table.
15
