参数资料
| 型号： | CST206-2A |
| 厂商： | Triad Magnetics |
| 文件页数： | 1/1页 |
| 文件大小： | 0K |
| 描述： | TRANSF 56MH CRNT SENSE |
| 产品目录绘图： | CST206-xx |
| 标准包装： | 1 |
| 系列： | CST206 |
| 变压器类型： | 频率 20-200kHz |
| 匝数比 - 主:副： | 1 : 200 |
| 电感： | 56mH |
| 额定电流： | 80A |
| DC 电阻(DCR)： | 最大 3.5 欧姆 |
| E.T.： | 4000V µS |
| 安装类型： | 通孔 |
| 尺寸/尺寸： | 27.30mm L x 10.16mm W |
| 高度 - 座高（最大）： | 31.12mm |
| 端接类型： | PC 引脚 |
| 产品目录页面： | 2700 (CN2011-ZH PDF) |
| 工具箱： | 237-1102-ND - KIT CRNT SENSE TRANSF CST206 SER |
| 其它名称： | 237-1098 |

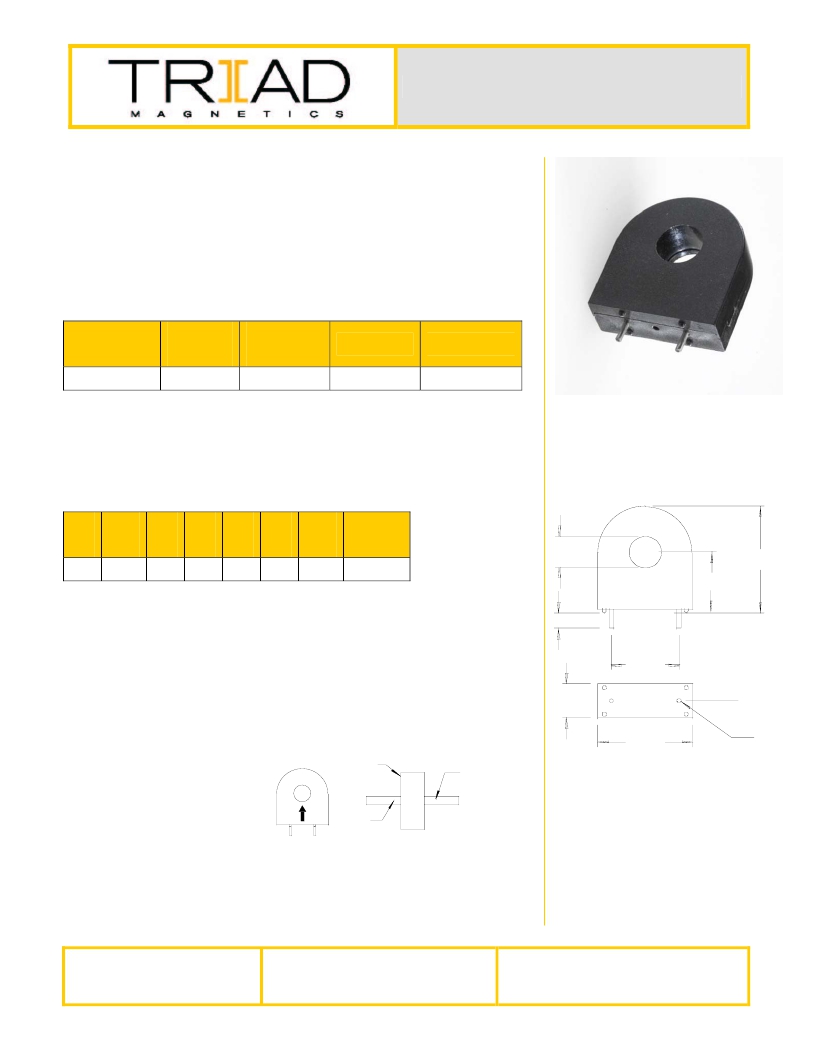

Current Sense Transformers
CST206-2A
Description:
Designed for switching power supply applications, Triad current sense
transformers are used to detect the current passing through a conductor.
These transformers are very reliable and operate over the frequency range of
20 kHz-200 kHz.
Electrical Specifications (@25C)
ET VμSEC
REF 20kHz
4000
Turns
Count
200
Min.
Ind. mH
56.0
DCR Max. ?
3.50
Pri. Amps
80.0 RMS
Safety:
These current sense transformers are constructed of UL rated 130°C materials.
Dimensions:
A
B
C
D
E
F
G
H
Min
.360
Max
1.225
Ref
.700
Ref
.127
Ref
.500
Max
.400
Max
1.075
Dia. Pins
.045
A
B
C
Units: In inches
D
Technical Notes:
1. Derate ET product by 32% for 50 kHz, 52% for 100 kHz and 50% for
unidirectional operation.
E
2. Rated primary current renders approximately 40°C temp. rise.
3. Maximum recommended terminating resistance of 1 ohm per turn.
4. Primary is inserted through hole in casting.
PIN 1
TEST CONDUCTOR
F
G
CL
H
1. START OF TEST CONDUCTOR TO HAVE
THE SAME POLARITY AS PIN 1
ST
FN
2. DECAL ARROW ON CASE TO INDICATE
POLARITY
1
ARROW
POLARITY DETAIL TOP VIEW
RoHS Compliance: As of manufacturing date February 2005, all standard products meet the
requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’
website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
