- 您现在的位置：买卖IC网 > Datasheet目录66 > AA3535QB24Z1S (Kingbright Corp)LED 3.5X3.5MM 457NM BLUE CLR SMD Datasheet资料下载
参数资料
| 型号： | AA3535QB24Z1S |
| 厂商： | Kingbright Corp |
| 文件页数： | 2/6页 |
| 文件大小： | 285K |
| 描述： | LED 3.5X3.5MM 457NM BLUE CLR SMD |
| 产品目录绘图： | AA3535 Series Top AA3535 Series Bottom AA3535 Series Side |
| 特色产品： | AA3535 Series - SMD LEDs |
| 标准包装： | 1 |
| 系列： | AA3535 |
| 颜色： | 蓝 |
| 电流 - 最大： | 150mA |
| 正向电压： | 3.2V |
| 流明 @ 电流 - 最大： | 6 lm |
| 在特定电流下的光通量 - 测试： | 6 lm |
| 流明/瓦 @ 电流 - 测试： | 13 lm/W |
| 电流 - 测试： | 150mA |
| 波长： | 457nm |
| 透镜样式/尺寸： | 圆形，带平顶，2.6mm |
| 视角： | 120° |
| 安装类型： | 表面贴装 |
| 封装/外壳： | 0.138" L x 0.138" W x 0.045" H（3.50mm x 3.50mm x 1.15mm） |
| 包装： | 标准包装 |
| 产品目录页面： | 2890 (CN2011-ZH PDF) |
| 其它名称： | 754-1381-6 |
SPEC NO: DSAJ3811 REV NO: V.1 DATE: MAY/07/2009
PAGE: 2 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.F.Lu ERP: 1201004866

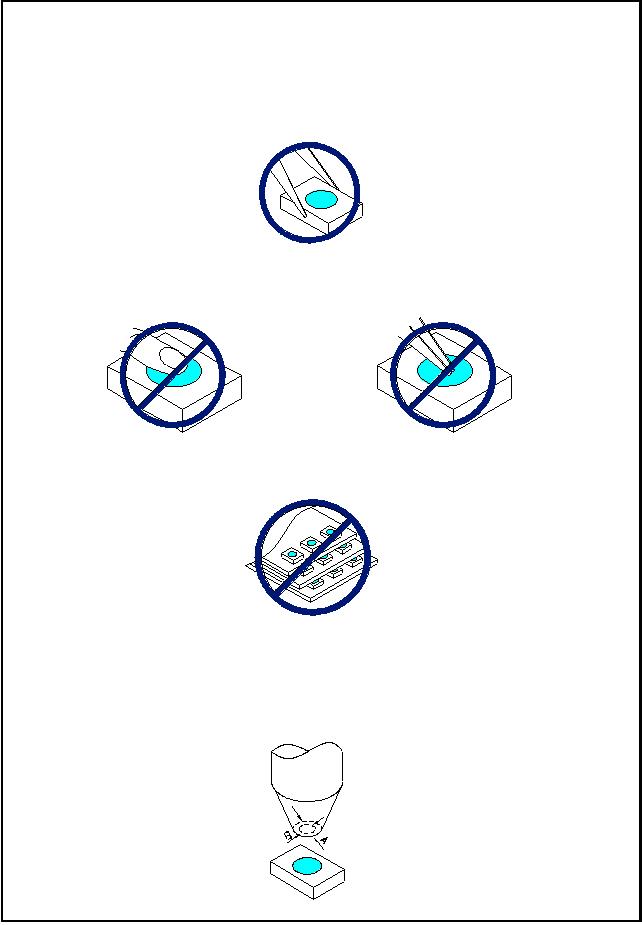

Handling Precautions
Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic
significantly reduces thermal stress, it is more susceptible to damage by external mechanical force.
As a result, special handling precautions need to be observed during assembly using silicone encapsulated
LED products. Failure to comply might leads to damage and premature failure of the LED.
1. Handle the component along the side surfaces
by using forceps or appropriate tools.
2. Do not directly touch or handle the silicone lens
surface. It may damage the internal circuitry.
4. The outer diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks. The inner diameter
of the nozzle should be as large as possible.
5. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup.
6. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise pickup
and avoid damage during production.
3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or
damage the internal circuitry.
